Triton

The Triton is ideal for use with generator sets equipped with base mounted fuel tanks, typical of data center applications. It is a robust, turnkey system which provides essential fuel reliability functions while eliminating the need to procure and assimilate diverse, unrelated and potentially incompatible sub-systems. With the Triton, these essential functions run and communicate seamlessly and are supported by a single source: Simplex.

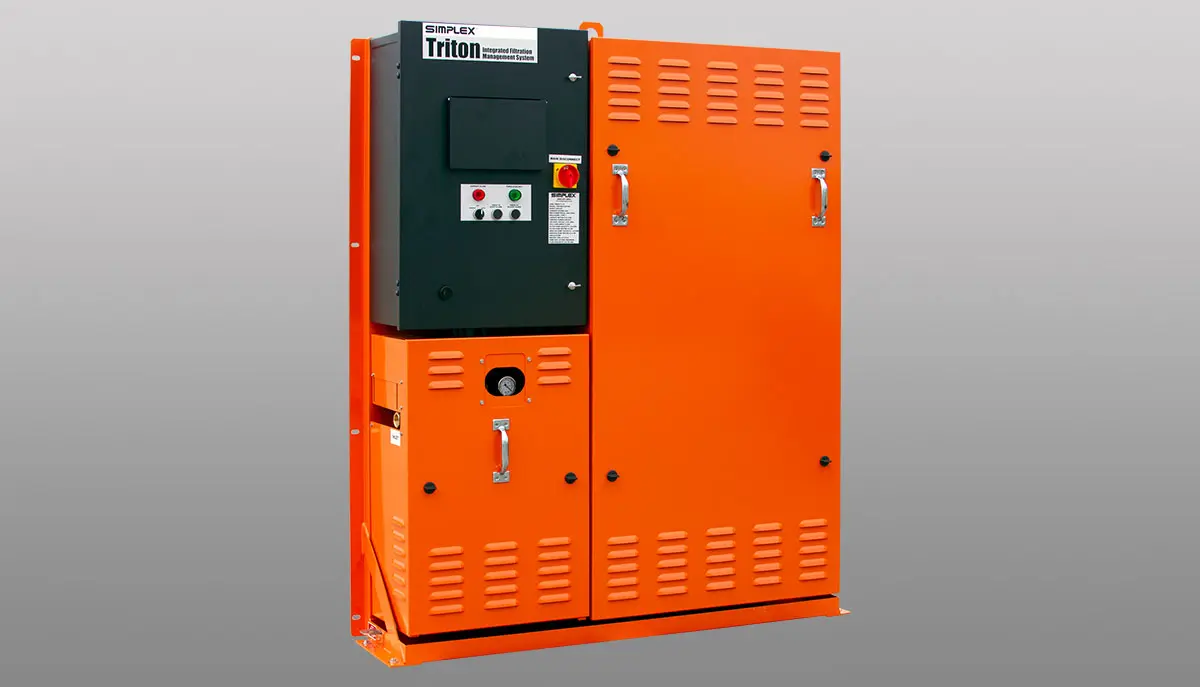

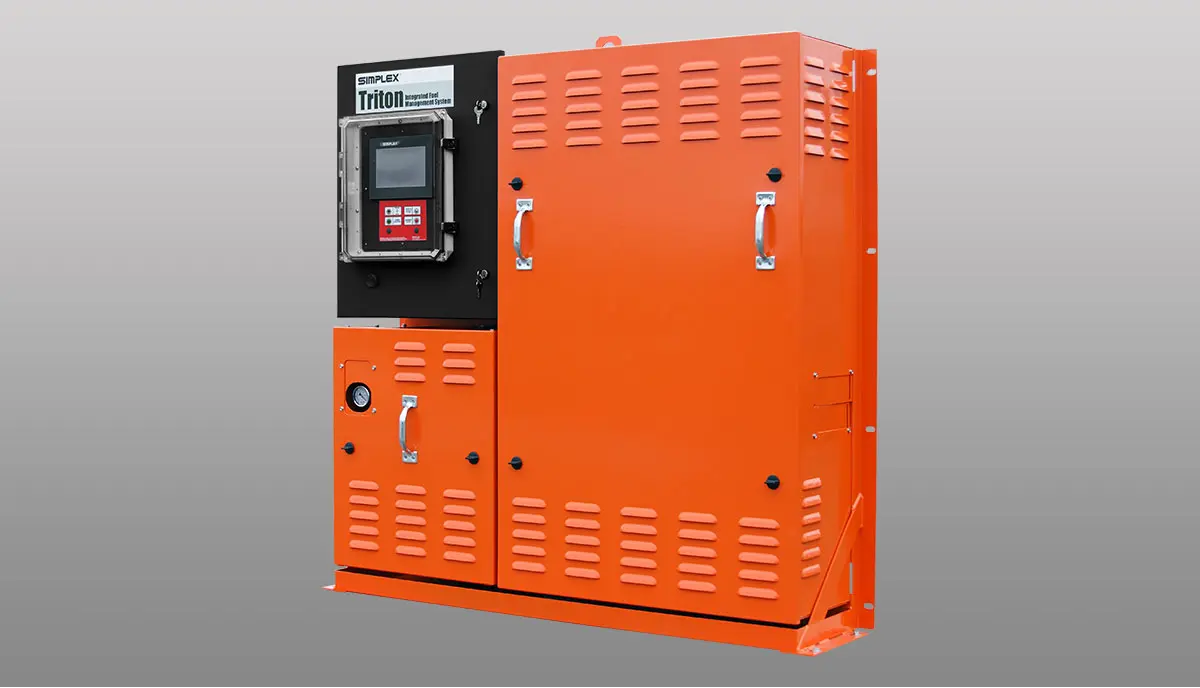

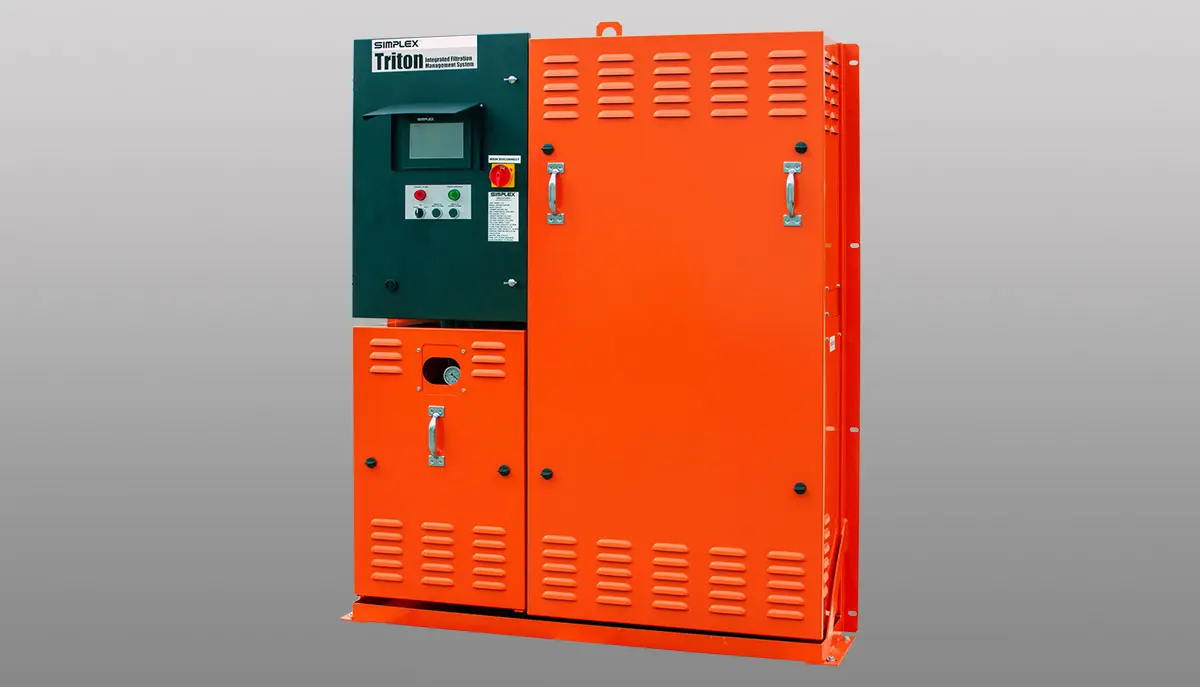

The Simplex Triton is packaged for interior or exterior (with optional weatherproof enclosure) installation, single fuel inlet/outlet connections and simplified power connections. All required level, leak and temperature sensors along with integration software are included.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Critical Functions:

Tank level gauging
Tank leak protection
Fuel level alarms
Fuel heating and temperature control
Fuel filtration including water separation
Tank filling and overfill protection when combined with a Simplex Automatic FuelPort, Mini-SmartPump or SmartPump
Conversion of base tank to an automatic day tank when combined with Simplex Packaged Pump Sets or Simplex Pump Controllers
Communication with building management or SCADA systems, event logging.

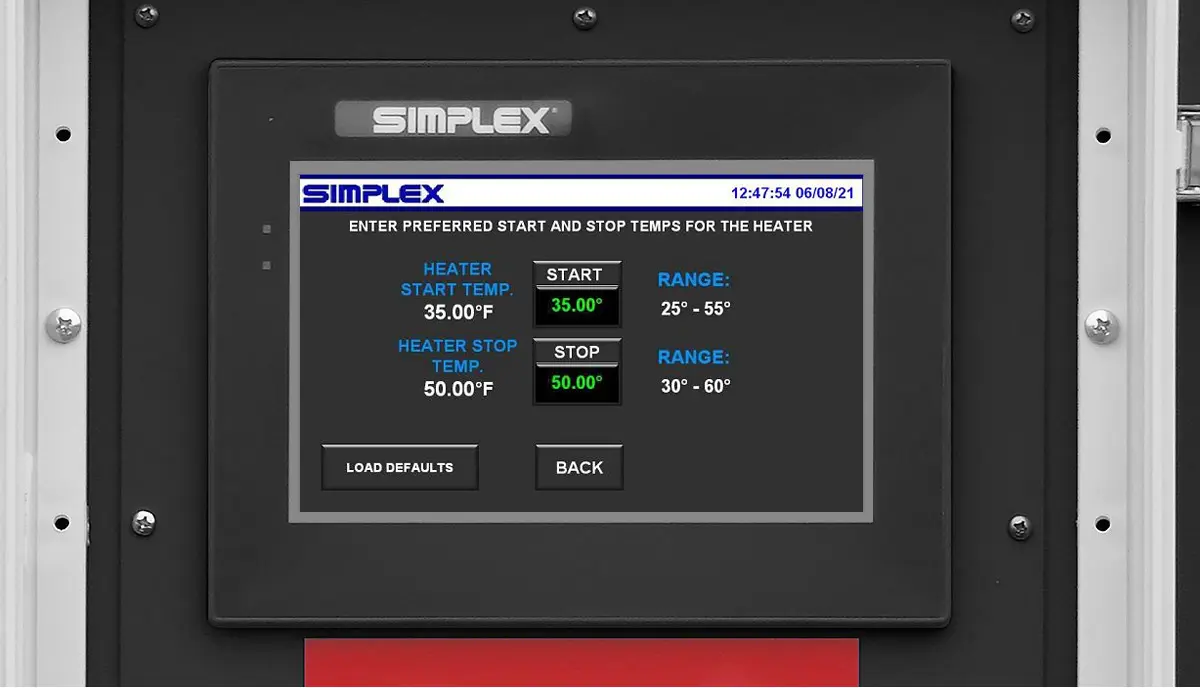

The functions above are integrated into an onboard PLC with touchscreen operator interrace running proprietary software. The PLC communicates with the BMS or SCADA system via MODBUS (RS485 standard, Ethernet optional).

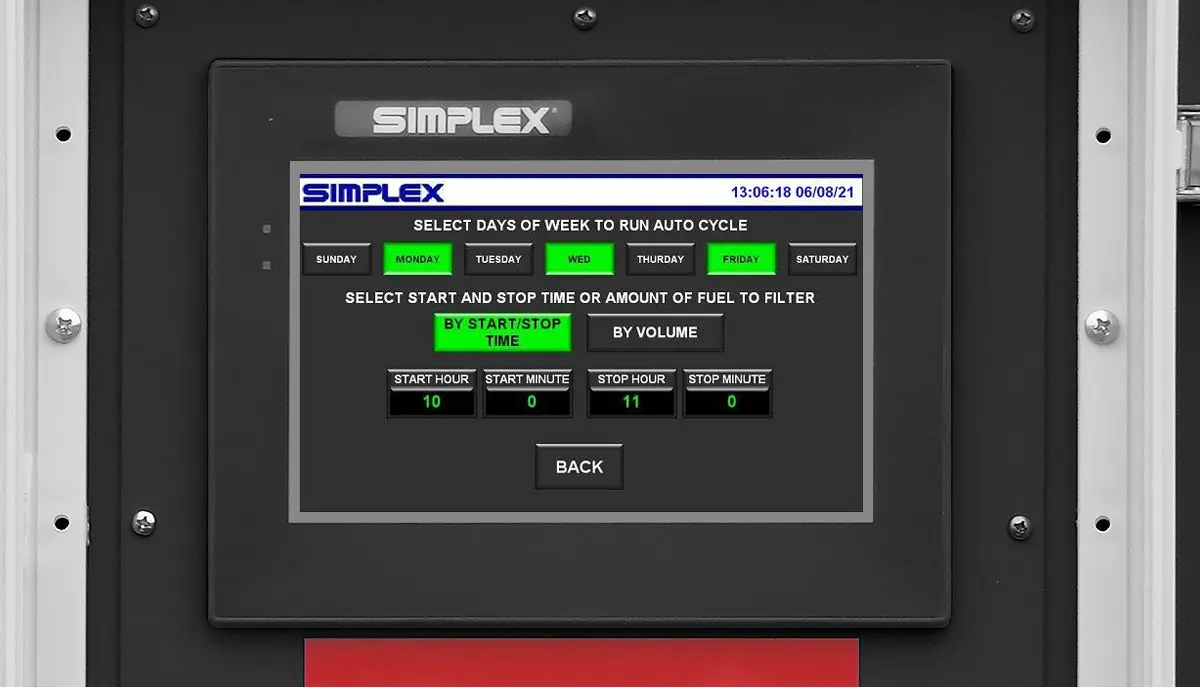

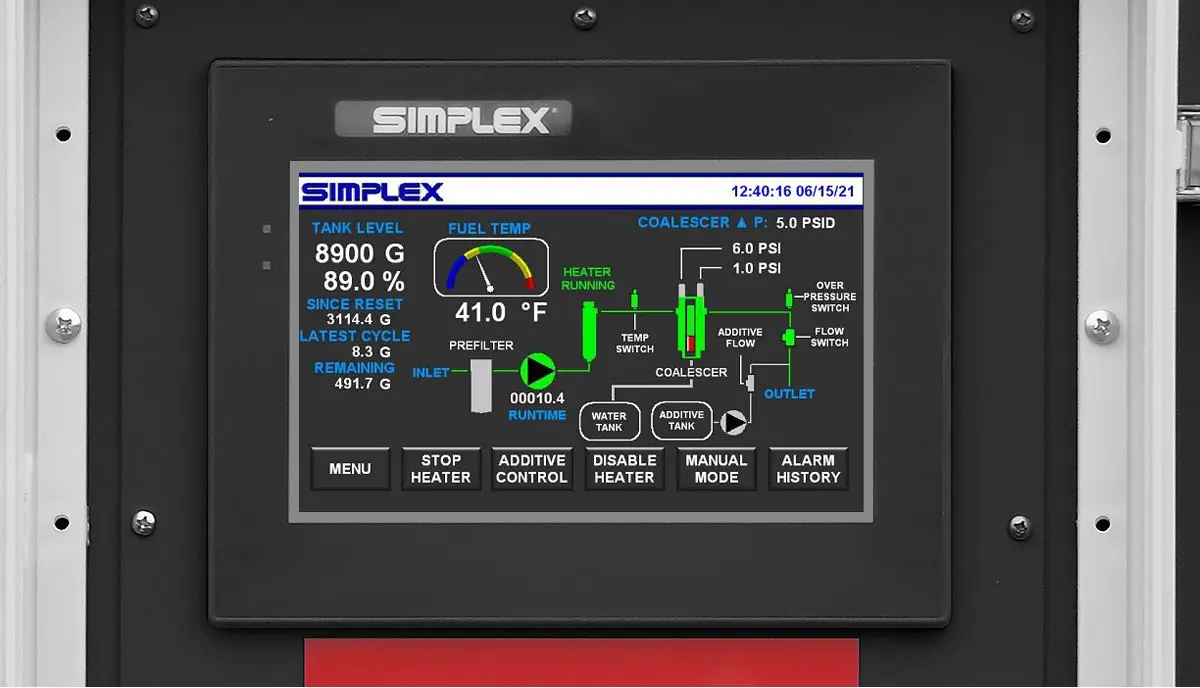

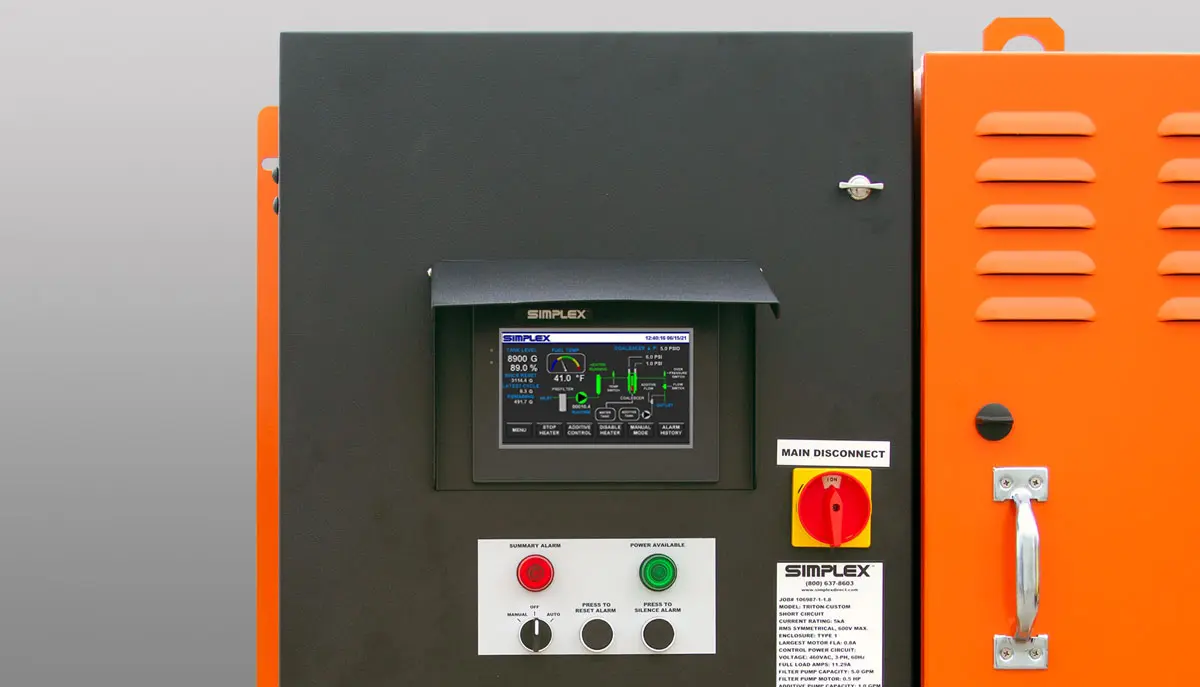

Digital Control	The Triton is equipped with a digital control system as follows:a. PLC with discrete inputs and outputs as required, RS232/485 (standard) and Ethernet (optional) ports, 4-20mA inputs, thermocouple inputs, SD program card for easy upgrade or modification of resident program.b. Touchscreen operator interface, 7-inch color TFT LCD widescreen with LED backlight
Tank Gauging	The Triton is supplied with either a 0.25-inch resolution electro-mechanical continuous level sensor (standard) or a 0.10 inch resolution, high accuracy magnetostrictive continuous level sensor (optional). Both sensors provide a 4-20mA input to the onboard PLC for level display on the touchscreen, generation of programmable level alarms and communication of same to the BMS or SCADA system
Leak Detection	Primary tank leak sensor, unit leak sensor; input, display and alarm register Four (4) user configurable inputs for remote leak sensors, configurable display and alarm register suitable for interstitial, sump, double-wall pipe sensing
Fuel Temperature Control	The Triton includes a circulation type fuel heater in-line with the filtration system and fed by the onboard circulation pump. Features include: a. 4.5 – 9.0 kw heater b. 240v; single-phase c. Thermostatic control via supplied tank mounting temperature sensor d. High temperature limit switch e. Loss of flow cutout f. Pump run enabling g. Integration with level gauging for low level cutout

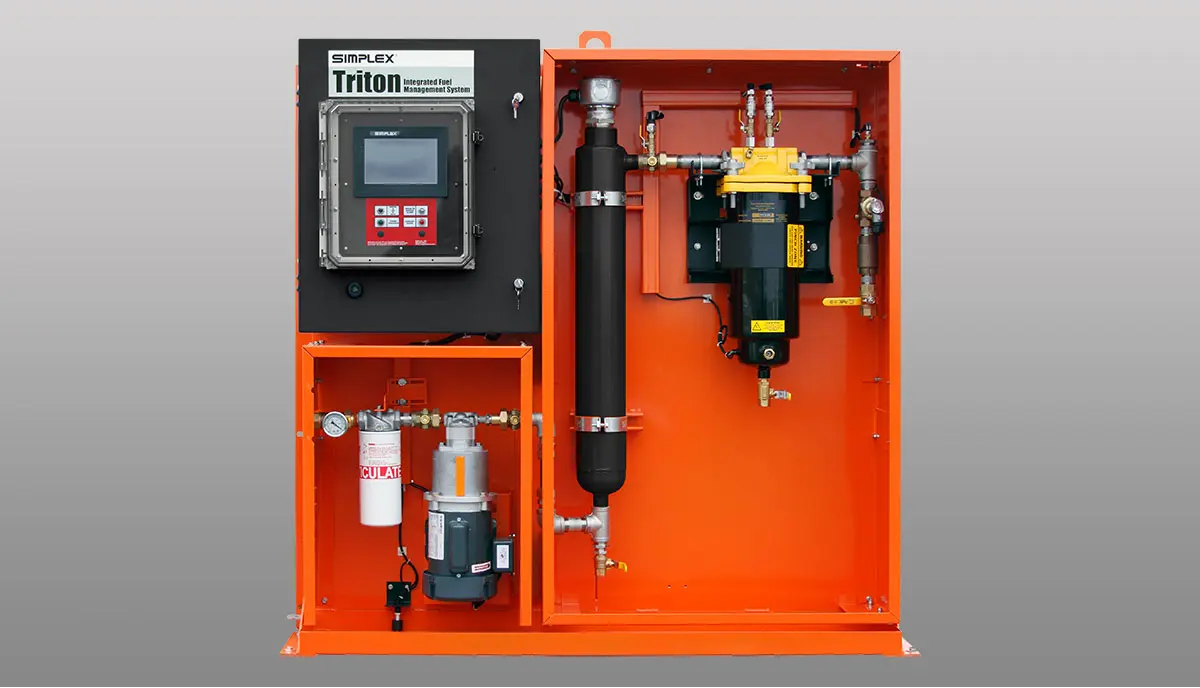

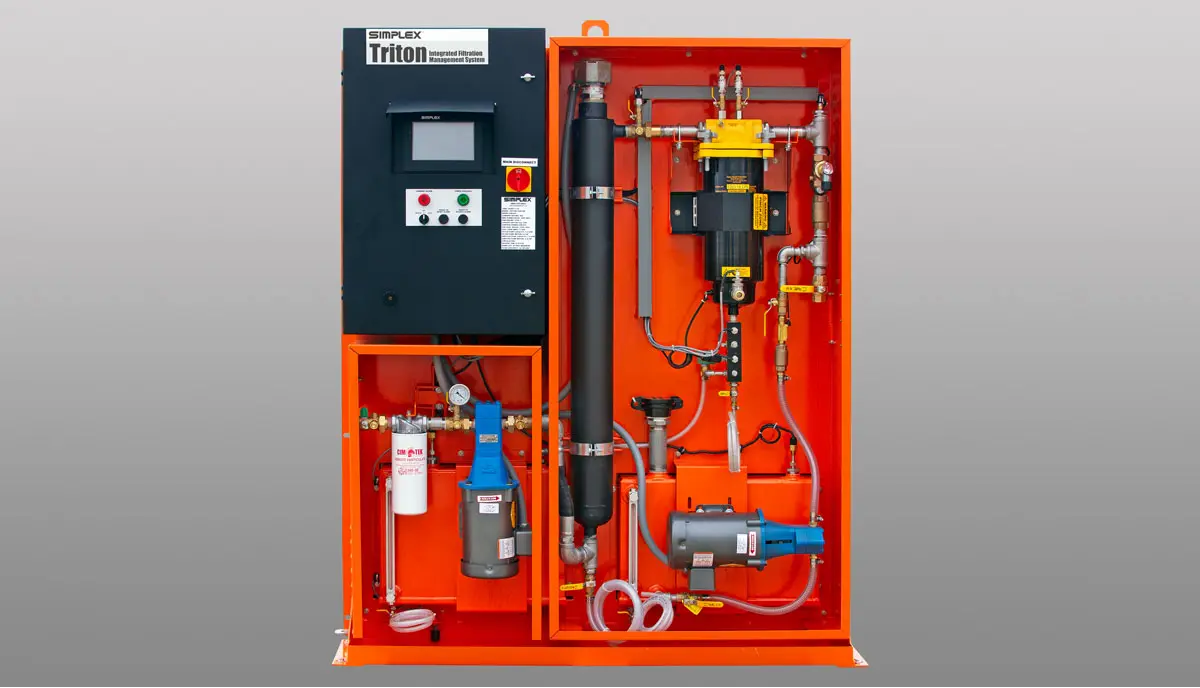

Fuel Filtration	The Triton includes 3-stage filtration and water separation: a. Spin-on 30-micron pre-filter b. Cartridge type combination 5-Micron final filter, 15 PPM water coalescor/separator, with pressure differential sensors c. Custom supply drop tube
Circulation Pump	The Triton includes an onboard circulation pump for filter and heater operation: a. 2-4-7-10 GPM. b. 1/3, 1/2, 3/4HP, 240v, single-phase motor c. Includes shutoff valves, check valve, flow switch
System Power Requirements	240V, Single-phase, 60Hz Select pump and heater, add respective FLA pluse 2.0A control load
Enclosure and Mounting	The Triton is factory packaged: a. Wall or floor mountable b. Indoor (standard) or outdoor (optional, includes weatherproof enclosure and interior heater) c. Single-point power connection (dedicated heater connection for large heaters) d. Fuel inlet, fuel outlet pipe connections e. Leak containment basin with leak sensor f. Control panel with access door g. Removable equipment covers h. Powder coated
Dimensions	55.250"W x 67.563"H x 13.875"D

Magnetostrictive level sensor, 4-20ma output, in lieu of standard electro-mechanical level sensor .01-inch resolution, 0.5% accuracy
Ethernet communication module
4-20mA level output (in addition to digital output)
Outdoor weatherproof construction, including weatherproof enclosure and interior heater
Additional leak sensors, up to 4 total (float switch type)
Magnetic fluid channel
Waste water holding tank
Chemical additive system and holding tank (chemical additive not included)

Note: We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.
