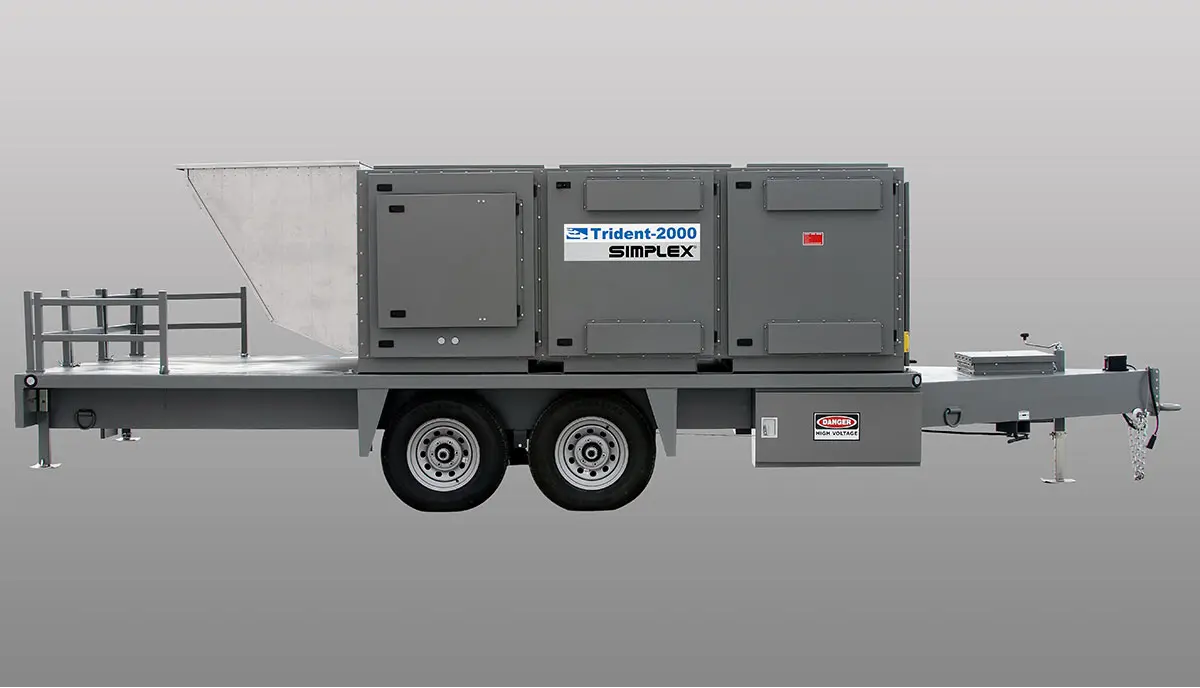

The Trident Trailer Load Bank is ideal for field testing in the performance of start-up and commissioning activities, service contracts and engine generator maintenance. The Trident family comprises load modules from 600-1250kw integrated with trailers, cable storage and connection accessories and digital controls. The Trident 1250 is a single load module product. The Trident 2500 is a two-load module product, 1500- 2500kw rated. The Trident is a single or dual voltage Load Bank suitable for all common 50-60-400 hertz voltages up to 600V.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

General

NRTL Listed: CSA-US or CSA-Canada.
Simplex Trident load banks can be used to satisfy the requirements of the National Fire Protection Association (NFPA) for emergency stand-by power systems.

NFPA Testing

Simplex Stationary Load Banks can be used to satisfy the requirements of the National Fire Protection Association (NFPA) for emergency stand-by power systems. These requirements concern acceptance testing and periodic on-site testing and maintenance of emergency and stand-by power systems.

The essence of the requirements is that emergency and stand-by power systems are to be tested under load.

NFPA 110 - Emergency and Standby Power Systems, Sections 5-13, 6-3, 6-4
NFPA 99 - Health Care Facilities, Section 3-4.4.1.1 (b)
NFPA 70 - National Electric Code, Section 700-4 (b)

Digital Control

PLC based control with 8-inch color TFT touchscreen interface. MODBUS over RS-485 network communication.
Nominal 5.0 kw resolution: direct enter any load value and controller will apply load within nominal 5kw resolution.
Controller automatically calibrates loads for reduced voltage operation.

Instrumentation

Digital power transducer with Ethernet communication to digital controller. Data display on touchscreen. Data acquisition and recording.

Load Elements

Simplex "Powr-Web" chromium alloy, open wire, continuously supported, power resistor.

Load Control

3-Pole contactors.

Load Element Circuit Protection

Branch circuit fuses. One set of fuses each 50KW branch. Fuses are current limiting type, 200KAIC, 600V.

Cooling System

3-phase, direct-drive fan, 21,000 CFM per load module.

Malfunction Detection System

Protection against fan failure, high exhaust air temperature, high intake air temperature, overvoltage and fan reversal. Exhaust air temperature displays on screen.

Control Power Supply

Dual voltage control power transformer with supply power switchable to internal (generator) or external.

Touch Screen

Easily removable from panel.

Connection

Cam-Lock style cable connectors behind hinged door. 4/0, 400A. Snap-back protective covers. Also available orange-brown-yellow.

Cable Storage

Capacity: 900-feet x 4/0 (1" cable), perfect wrap; 750-feet x 4/0 (1" cable), nominal wrap.
Standard Reel Features: Manual, gear driven, crank rewind; Pinion brake; 2" steel channel frame, powder coated.

Trailer

Construction: Structural steel chassis, steel deck, all welded, built to DOT specification, NTM DOT certification label.
Axles: Tandem.
Hitch: 2-5/16" ball hitch or 3" pintle ring.
Brakes: Electric with breakaway system or hydraulic surge, mechanical parking brake.
Suspension: Leaf springs.
Features: Safety chains, DOT LED lighting with connector, reflectors, tie down rings, rear stabilizers, front lift jack, mud deflectors.
Standard Finish: Dark gray polyurethane with epoxy primer.
Optional Finishes: Customer selected color. Undercoating. LINE-X overall protective coating. Hot dip galvanizing.

Trident 600KW-2500KW Trailer Load Bank Specifications

Capacity	600KW-1250KW - Single Module1500KW-2500KW - Double Module
Load Type	Resistive
Power Factor	1.0
Voltages	Dual Voltage: 240/480V AC, 3-phase Operational at any voltage to 480V AC maximum, single or 3-phase
Optional Voltages	Instead of 240/480v dual voltage: Any 50hz or 60hz single voltage to 690v 600v, single voltage 600/480v, dual voltage 600/300v, dual voltage 480/416v, dual voltage 208/416v, dual voltage
Frequency	50, 60 Hertz standard
Load Control	Nominal 5 kw resolution: direct enter any load value and digital controller will apply load within nominal 5 kw resolution. Digital controller automatically calibrates loads for reduced voltage operation.
Connection	3-wire plus ground; "Cam-Lock" type power connections
Time Rating	Continuous
Ambient Air Temperature	120°F maximum
Airflow	21,000 CFM per module
Temperature Rise	180°F nominal
Load Control	3-Pole contactors
Load Element Circuit Protection	Branch circuit fuses. One set of fuses each 50KW branch. Fuses are current limiting type, 200KAIC, 600V.
Control/Fan Power	230/460V, 3-phase, 60 Hertz 190/380V, 3-phase, 50 Hertz Switchable internal (generator)-external External fan/control power; requirements: 240/480vAC, 3-phase, 60 Hertz, 40 / 20 amps service (7.5HP motor) 230/460-115V control power transformer internal to Load Bank

Trailer Specifications

Construction	Structural steel chassis, steel deck, all welded, built to DOT specification, NTM DOT certification label
Capacity	8,000-10,400 GVWR - Single Module 12000 lbs. gross weight - Double Module
Axles, Hitch and Tires	Tandem Axles 2-5/16" ball hitch or 3" pintle ring ST225-75-R15 - Single Module ST235-85-R16 - Double Module
Brakes	Electric with breakaway system or hydraulic surge, mechanical parking brake
Suspension	Leaf springs
Features	Safety chains, DOT LED lighting with connector, reflectors, tie down rings, rear stabilizers, front lift jack, mud deflectors
Standard Finsh	Dark gray polyurethane with epoxy primer.
Optional Finishes:	Customer selected color. Undercoating. LINE-X overall protective coating. Hot dip galvanizing.
Dimensions	90"W x 81"H x 200"D - Trailer with Single Module 99"W x 84"H x 270"D - Trailer with Double Module
Weight	7,600 lbs. - Trailer with Single Module 10,500 lbs. - Trailer with Double Module

Note: Dimensions and weights are subject to change with capacities and options selected.

Voltages

Any 50hz or 60hz single voltage to 690v
600v, single voltage
600/480v, dual voltage
600/300v, dual voltage
480/416v, dual voltage
208/416v, dual voltage

Trailer Finish

Customer selected color.
Undercoating.
LINE-X overall protective coating.
Hot dip galvanizing.

Connections and Cabling

4/0, extra-flex, portable power cable.
Type W.
2000v.
90C EPDM insulation.
Polyester braid reinforcement between insulation and outer jacket.
2062 strand copper.
Crimp-on ring lugs on generator end.
5 foot "Pigtails" available with "CAM-LOCK" type connections on one end and opposite end lugged, bare or otherwise terminated.

Load Bank

Horizontal / Vertical Exhaust Hood
